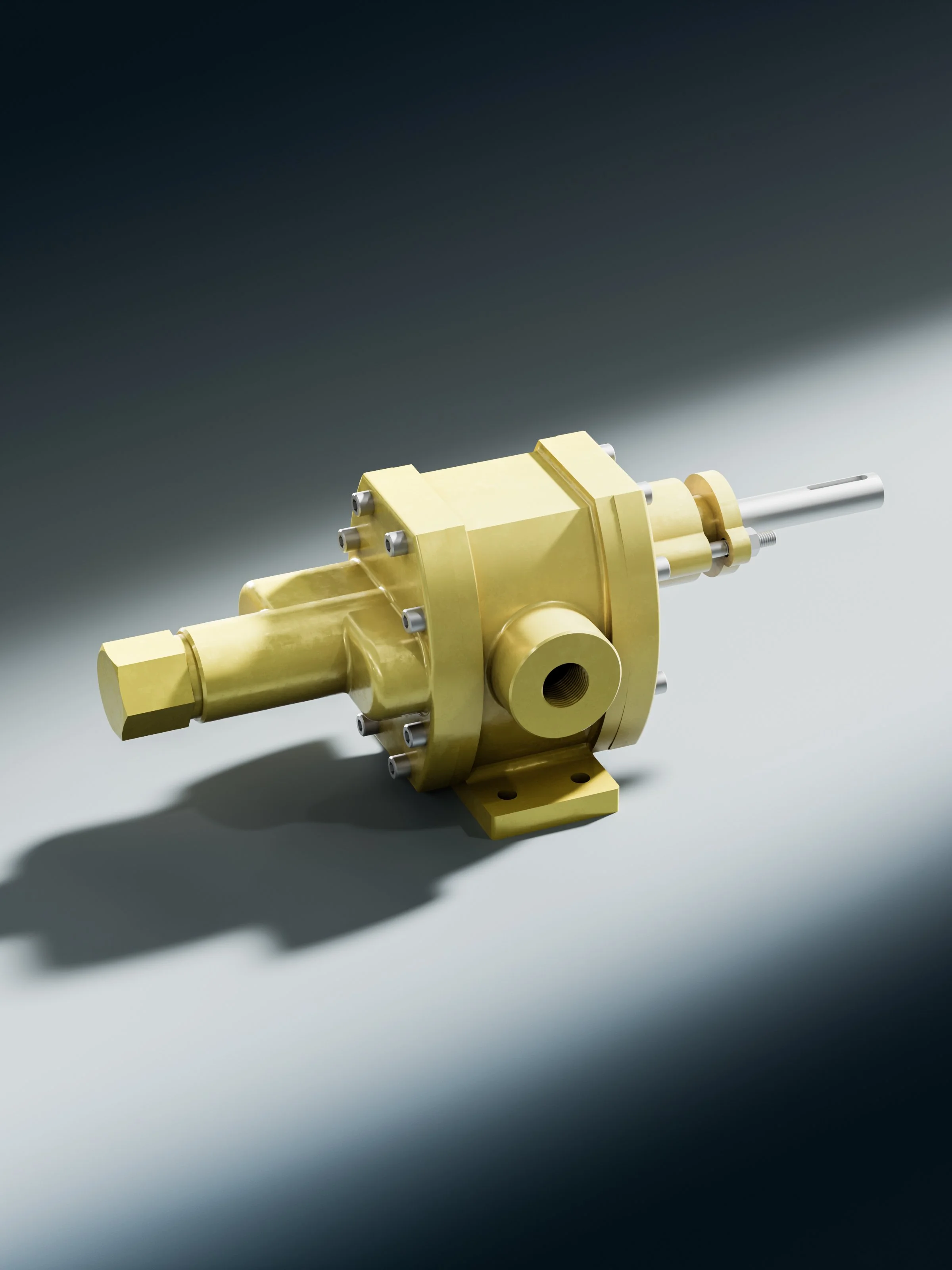

UM Series
Range of Applications
The UM series is versatile range of Positive Displacement Rotary Gear Pump. Rotary Gear pump Preferably used for Transfer/feed of Light or heavy viscous fluids. Many different types of industries and fluid shaving use in.
Refinery Technology
Petrochemical Industries
Crude Oil Transfer
Fuel oil transfer/firing in general industries
Soap / fatty acid / glycerin / edible oil / synthetic detergent plants
Lubricant system
Rayon / polymer
Operations
Rotary gear pumps are positive displacement pumps of extremely simple design. They consists of only two moving parts, a Drive Gear & Driven Gear rotating on replaceable bush bearing fitted in the pump housing. Gears from chamber containing liquid being pumped. When the drive gear is rotated, the chambers are filled at the suction and liquid travels in the teeth cavity on the two outer gears, with the meshing of gears the same being discharged evenly through delivery connection. The output is virtually free from pulsation and turbulence.
A versatile, general purpose pump capable of dealing with wide variety of viscous liquids.
No axial thrust, balanced gear design.
Replaceable bush bearing housed in pump body with positive self lubrication arrangement.
Simplicity of design ensure ease of maintenance, reduce down time and maintenance.
With or without relief valve.
Special Futures
UM-25
UM-25
UM-50
UM-50
SIZE
3/4”
1”
1 1/2”
2”
57
60
114
143
35
40
76
95
28
30
57
71.5
MODEL
RPM (in LPM)
1440
960
750
Construction
PUMP BODY
Standard construction in close grain cast iron confirming to ASTM a 216 WCB. Alternative also available in SS 410, 304 , 316. Pump body in jacketed construction available for heating and cooling.
GEARS
Standard construction in Carbone steel EN – 24/ SA 8620, Alternative also available in SS 410, 304, 316. Gears are hob cut, depending upon duty condition gears and shaft are hardened and ground.(Not in standards pumps.)
SHAFTS
Standard construction in Carbone steel EN – 19./SA 8620 Alternative also available in SS 410, 304, 316, Alloy-20
RELIEF VALVE
Standard pumps are with built in relief valve. However, depending upon application pump can be supplied without relief valve.
TEMPERATURE
Standard pumps are built for operating 115°C.
PRESSURE
Standard pumps are designed for ideal working Pressure 7 kg/cm². however, pumps for higher operating pressure up to 30kg/cm² can be supplied.
